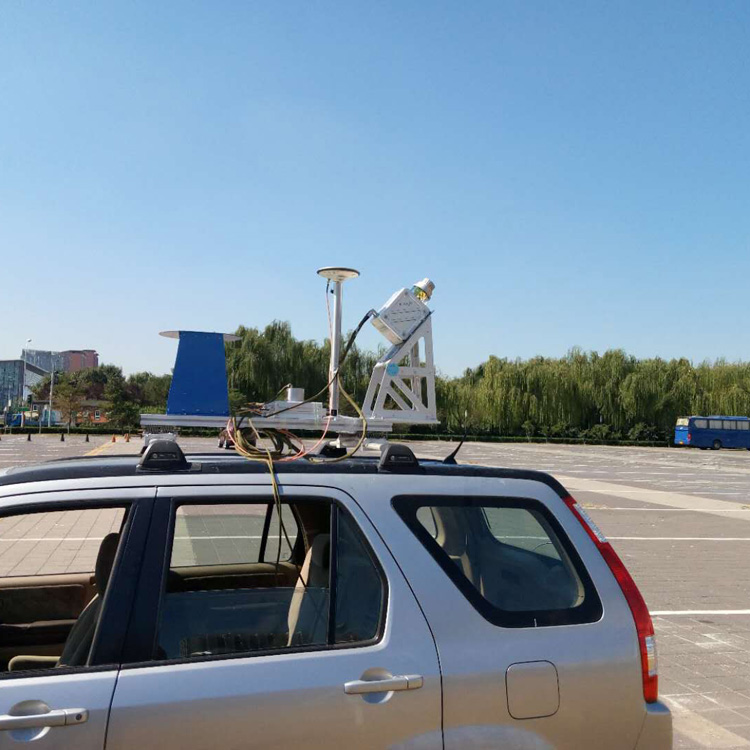

R-Angle mobile LiDAR can be installed onto vehicles, boats and other moving platforms.
R-Angle is featured with long-range, high precision, small size and lightweight. R-Angle includes 3 models with maximum range, i.e. RA-0500, RA-1000, RA-1500.
R-Angle provides integration interfaces for various IMUs and Cameras.
RA-0500: Working radius (m) ≥ 100@500kHz Max freq(kHz) 1200 Laser level ClassI Laser wavelength (nm) 1550 Echo mode Multiple echoes Spot size (mRad) ～0.35 FOV (°) 360 Scanning freq (Hz) 10～200 Range accuracy(mm) 10mm@100m Angle resolution (°) 0.001 Weight (kg) ～5 Working temp (℃) -20～65 Storage temp (℃) -35～70 Power supply (V DC) 18～32 Power consumption(W) ﹤ 100 | RA-1000: Working radius (m) ≥ 300@300kHz Max freq(kHz) 1200 Laser level ClassI Laser wavelength 1550 Echo mode Multiple echoes Spot size (mRad) ～0.35 FOV (°) 360 Scanning freq (Hz 10～200 Range accuracy(mm) 10mm@100m Angle resolution (°) 0.001 Weight (kg) ～5 Working temp (℃) -20～65 Storage temp (℃) -35～70 Storage temp (℃) 18～32 Power consumption(W) ﹤ 100 | RA-1500: Working radius (m) ≥ 1000@100kHz Max freq(kHz) 1200 Laser level ClassⅢ Laser wavelength 1550 Echo mode Multiple echoes Spot size (mRad) ～0.35 FOV (°) 360 Scanning freq (Hz) 10～100 Range accuracy(mm) 10mm@100m Angle resolution (°) 0.001 Weight (kg) ～15 Working temp (℃) -20～65 Storage temp (℃) -35～70 Power supply (V DC) 18～32 Power consumption(W) ﹤ 120 |

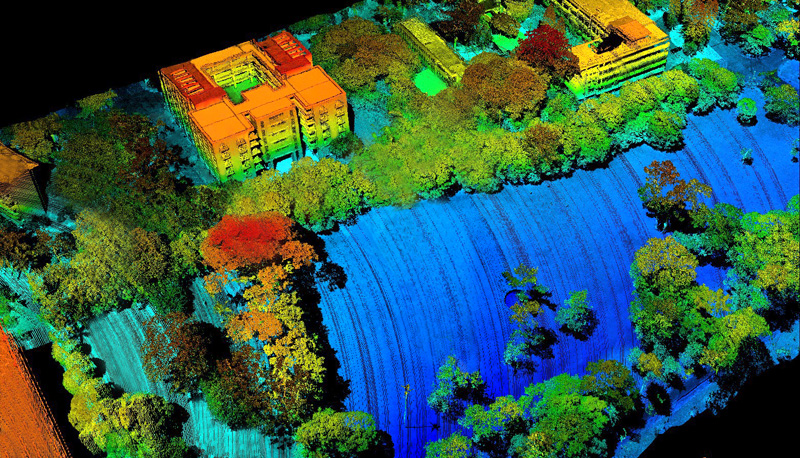

Digital city
