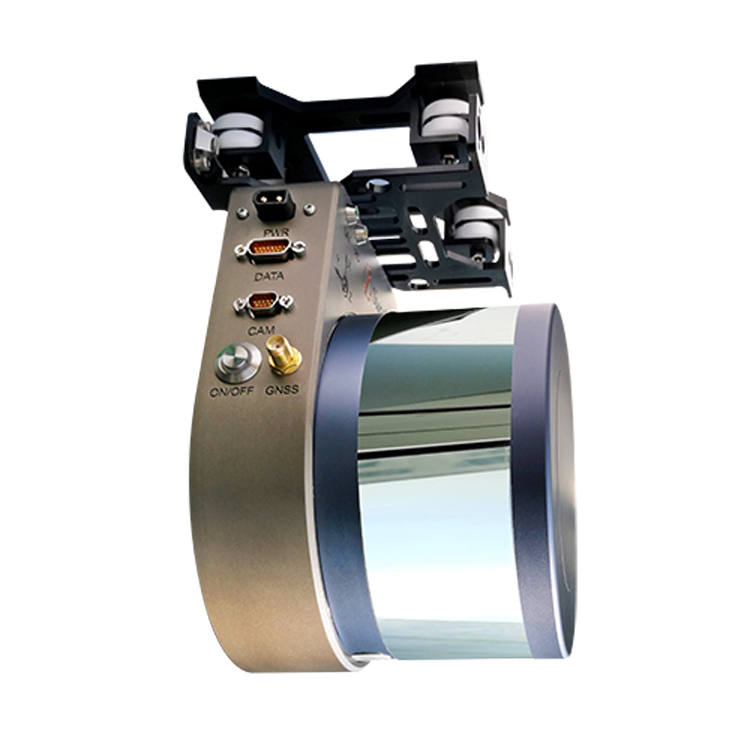

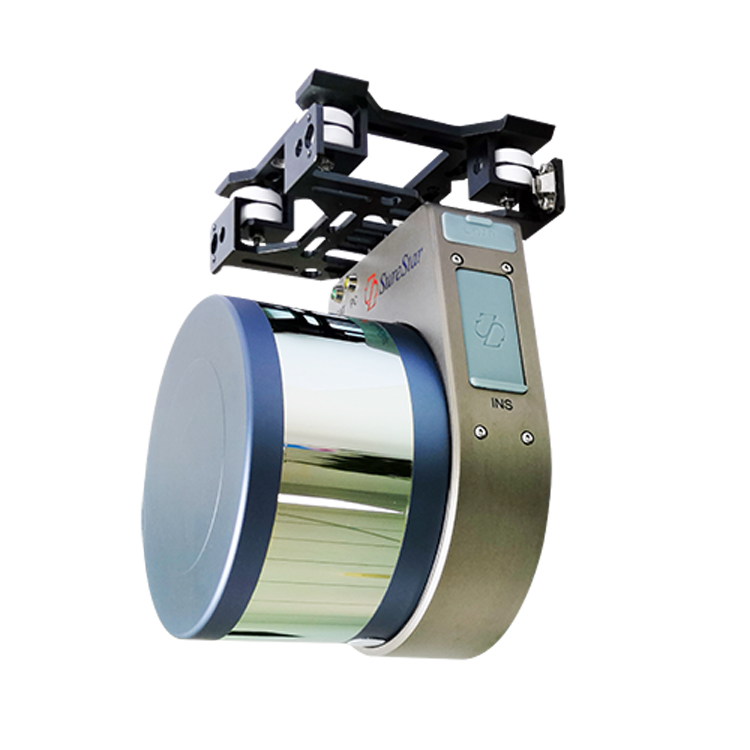

Genius Mini UAV LiDAR System

SureStar Genius Mini UAV LiDAR System


One-button start up
One-person operation
Light weight suitable for DJI M210
Genius Mini UAV LiDAR is developed by Surestar, a cost effective surveying grade LiDAR solution. Genius is integrated with a R-fans multi-beam Laser Scanner, a POS (GNSS/IMU), a computer control unit and data storage unit. Genius is featured as accurate, highly integrated, ultra light, easy to operate, fast to install/dis-assemble, and convenient to carry. As a user affordable solution, Genius adapts to most UAV systems. The highly integrated design awards Genius its portable system distinguish performance and stability. Genius enables surveyors to rapidly obtain Digital Surface Model and images for efficient geospatial applications.

details


Genius Mini UAV LiDAR is developed by SureStar, a cost-effective surveying grade LiDAR solution. Genius is integrated with an R-fans multi-beam Laser Scanner, a POS (GNSS/IMU), a computer control unit and a data storage unit. Genius is featured as accurate, highly integrated, ultra-light, easy to operate, fast to install/dis-assemble, and convenient to carry. As a user affordable solution, Genius adapts to most UAV systems. The highly integrated design awards Genius its portable system distinguish performance and stability. Genius enables surveyors to rapidly obtain Digital Surface Model and images for efficient geospatial applications.



Laser wavelength: 905nm

Laser Frequency: 320kHz/640kHz

Max Measurement Range: 200m (ρ= 20%)  250m (ρ= 60%)

Typical Operational Altitude: 50-150m

Scanner FOV: 360 °x 30 °

Echo number: 2 returns

Reflectivity reading: 8 bits or 12 bits

System vertical accuracy: <0.1m

Working temperature: - 20 ℃ - +55 ℃

System weight: 1.2kg( with the load of DJI M200/M210)

Communication interface: Ethernet, PPS

Power supply: 9 ~ 32VDC

Power consumption: ≤ 8W

Disaster assessment
Disaster assessment
Topographic mapping
Topographic mapping

Transmission lines
