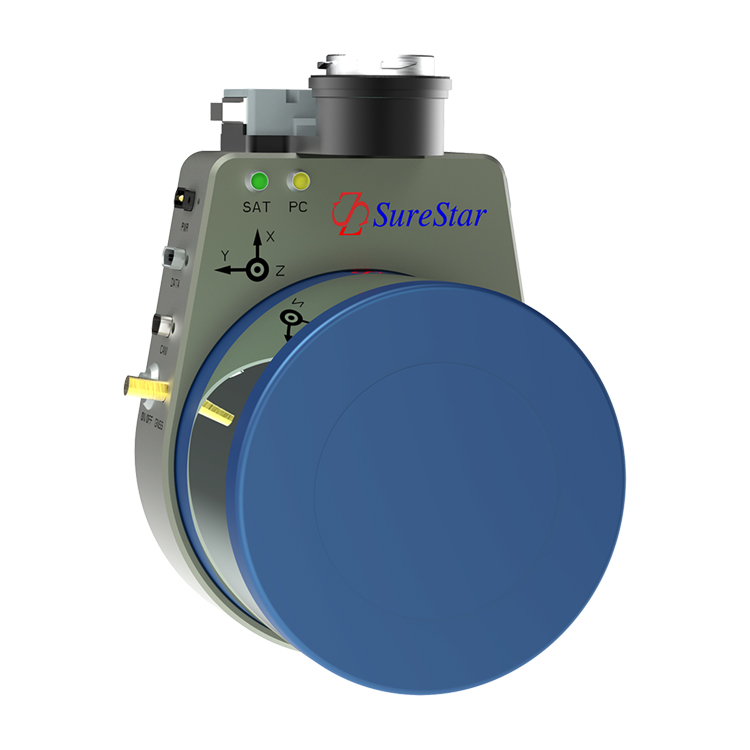

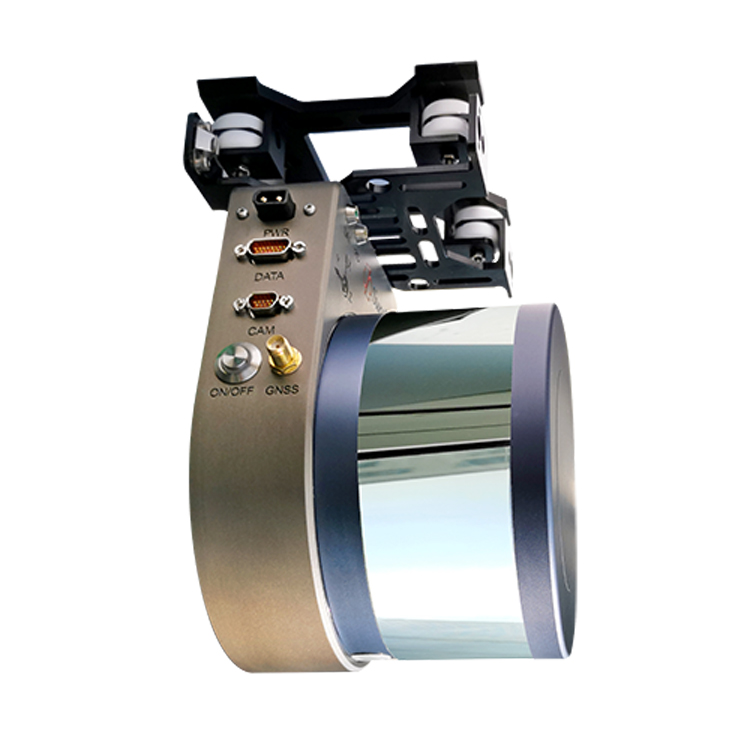

Genius Mini UAV LiDAR is developed by SureStar, a cost-effective surveying grade LiDAR solution. Genius is integrated with an R-fans multi-beam Laser Scanner, a POS (GNSS/IMU), a computer control unit and a data storage unit. Genius is featured as accurate, highly integrated, ultra-light, easy to operate, fast to install/dis-assemble, and convenient to carry. As a user affordable solution, Genius adapts to most UAV systems. The highly integrated design awards Genius its portable system distinguish performance and stability. Genius enables surveyors to rapidly obtain Digital Surface Model and images for efficient geospatial applications.
Laser wavelength: 905nm
Laser Frequency: 320kHz/640kHz
Max Measurement Range: 200m (ρ= 20%) 250m (ρ= 60%)
Typical Operational Altitude: 50-150m
Scanner FOV: 360 °x 30 °
Echo number: 2 returns
Reflectivity reading: 8 bits or 12 bits
System vertical accuracy: ＜0.1m
Working temperature: - 20 ℃ - +55 ℃
System weight: 1.2kg（ with the load of DJI M200/M210）
Communication interface: Ethernet, PPS
Power supply: 9 ~ 32VDC
Power consumption: ≤ 8W
